Introduction
The trajectory of the Acura NSX, marketed in several markets under the Honda brand, represents one of the most profound milestones in the history of contemporary automotive engineering. The emergence of this model was not just the launch of a new sports car, but a technological statement of intent that challenged the dominance of elite European manufacturers. By combining high performance with unprecedented daily usability, the NSX forced established brands like Ferrari and Lamborghini to re-evaluate their own standards of quality, ergonomics, and reliability. From its initial development under the codename "New Sportscar eXperimental" in the 1980s to the triumphant farewell with the Type S version in 2022, the NSX served as the ultimate showcase of Japanese innovation applied to vehicle dynamics.
The Origins and the New Sportscar eXperimental Concept
The seed of the NSX was planted in 1984, when Honda commissioned the HP-X (Honda Pininfarina eXperimental) project. At that time, the goal was to create a mid-rear engine vehicle that could rival or surpass the performance of Ferrari's V8 engines, specifically targeting the 328 model and, later, the 348. However, Honda's vision went beyond raw speed; the company wanted to offer a car that was mechanically reliable and ergonomically superior, something that European supercars of the time often neglected.
Development evolved from the HP-X concept to the NS-X prototype. During this phase, engineers decided to replace the originally planned 2.0-liter V6 engine with a 3.0-liter unit equipped with the new VTEC (Variable Valve Timing and Lift Electronic Control) technology. This technical decision was crucial, as it allowed the engine to deliver robust torque at low revs and explosive power at high revs, solving the traditional compromise between efficiency and performance. The increase in engine size required the chassis to be lengthened, which in turn benefited the vehicle's directional stability and allowed for a more advanced cabin design.
A determining factor in the dynamic soul of the NSX was the participation of Formula 1 driver Ayrton Senna. In 1989, during testing at the Suzuka circuit, Senna drove the prototype and offered honest and challenging feedback to the engineers: he stated that the car felt "fragile" and lacked structural rigidity. Taking the champion's criticism seriously, Honda worked intensely to increase the chassis rigidity by 50% in just a few months, finely tuning the suspension to create a platform that was both communicative and precise.
Initial Development Phases
| Stage | Model-Year | Technical Description |
|---|---|---|
| HP-X Concept | 1984 | 2.0L V6 engine, focus on aerodynamics and mid-engine. |
| NS-X Prototype | 1989 | Debut at the Chicago Auto Show; codename New Sportscar eXperimental. |
| Senna Refinement | 1989 | 50% increase in structural rigidity after testing at Suzuka. |
| Start of Production | 1990 | First full-aluminum production car. |
The First Generation (1990–2005): The Aluminum Revolution
Officially launched as a 1991 model, the Acura NSX shocked the industry by being the first mass-produced car with a monocoque chassis and body built entirely of aluminum. This material choice allowed the chassis to weigh just 210 kg (462 lbs), which was about 40% lighter than an equivalent steel structure, without sacrificing structural strength. The use of aluminum extended to the suspension arms and seat structures, resulting in a total weight saving of close to 200 kg compared to traditional methods.
The 3.0-liter C30A engine was an engineering masterpiece. With a V6 architecture, 24 valves, and dual overhead camshafts (DOHC), it produced 270 horsepower. One of the most notable innovations was the use of titanium connecting rods, a material used at the time in supersonic fighters like the F-15, providing lightness and strength to withstand the high rev limit of up to 8,000 rpm in manual models. Visibility was another differentiator; inspired by the F-16 fighter cockpit, the glass area offered a panoramic view rare in mid-engine cars, facilitating driving in urban environments and maneuvering.
Technical Specifications: Initial Phase (NA1)
| Attribute | Technical Detail |
|---|---|
| Powertrain | 3.0L V6 DOHC VTEC (C30A) |
| Power (Manual) | 270 hp @ 7,100 rpm |
| Power (Automatic) | 252 hp @ 6,600 rpm |
| Torque | 210 lb-ft @ 5,300 rpm |
| Transmission | 5-speed Manual or 4-speed Automatic |
| Chassis / Body | Aluminum Monocoque |
| Weight (1991 Coupe) | 1,370 kg (3,010 lbs) |
Production took place at the Tochigi plant by a team of 200 highly experienced technicians, each with at least 10 years of experience, ensuring that every unit was assembled with artisanal precision. With a production limit of just 25 cars per day, the NSX was an exclusive vehicle, costing $65,000 at its launch, the highest price for a Japanese car up to that date.
First Generation Evolutions and Facelifts

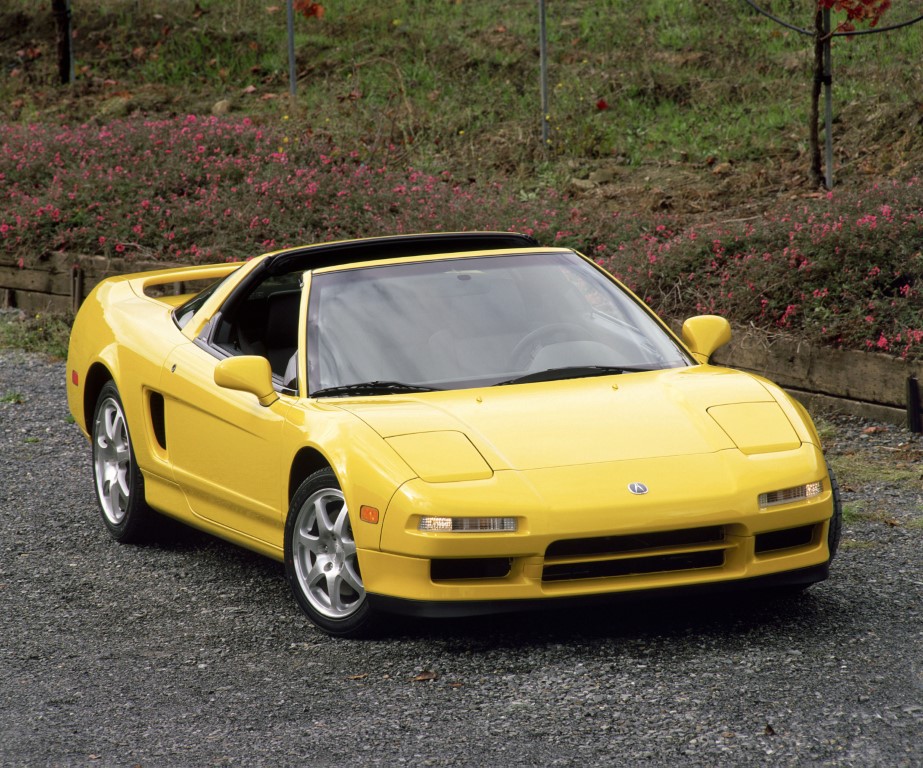

Throughout its 15-year lifespan, the first-generation NSX underwent significant evolutions that kept the model competitive against new rivals. In 1995, Honda introduced the NSX-T, featuring a removable Targa-style roof. Although removing the roof required structural reinforcements that added about 45 kg to the vehicle, the configuration became extremely popular, especially in the North American market, where it became the only option available for several years. In the same year, the drive-by-wire electronic throttle system was introduced, and the automatic transmission began offering "SportShift" control, allowing manual shifting via steering wheel selectors.
The Great Performance Leap in 1997 (NA2)
The year 1997 marked the most profound mechanical update of the first generation. For models equipped with a manual transmission, engine displacement was increased to 3.2 liters (C32B engine) through a process that utilized thinner fiber-reinforced metal (FRM) cylinder liners. This change raised power to 290 horsepower and torque to 224 lb-ft. Alongside the new engine debuted a 6-speed manual transmission with shorter gear ratios, which drastically improved acceleration.
The brakes were also upsized, with rotor diameter increasing from 282 mm to 298 mm to handle the higher speed and performance. To offset the weight of the new transmission and larger brakes, Honda used a new aluminum alloy for the doors and fenders that was 50% stronger, allowing the use of thinner panels. The net result was a weight increase of just 10 kg, maintaining the model's characteristic agility.

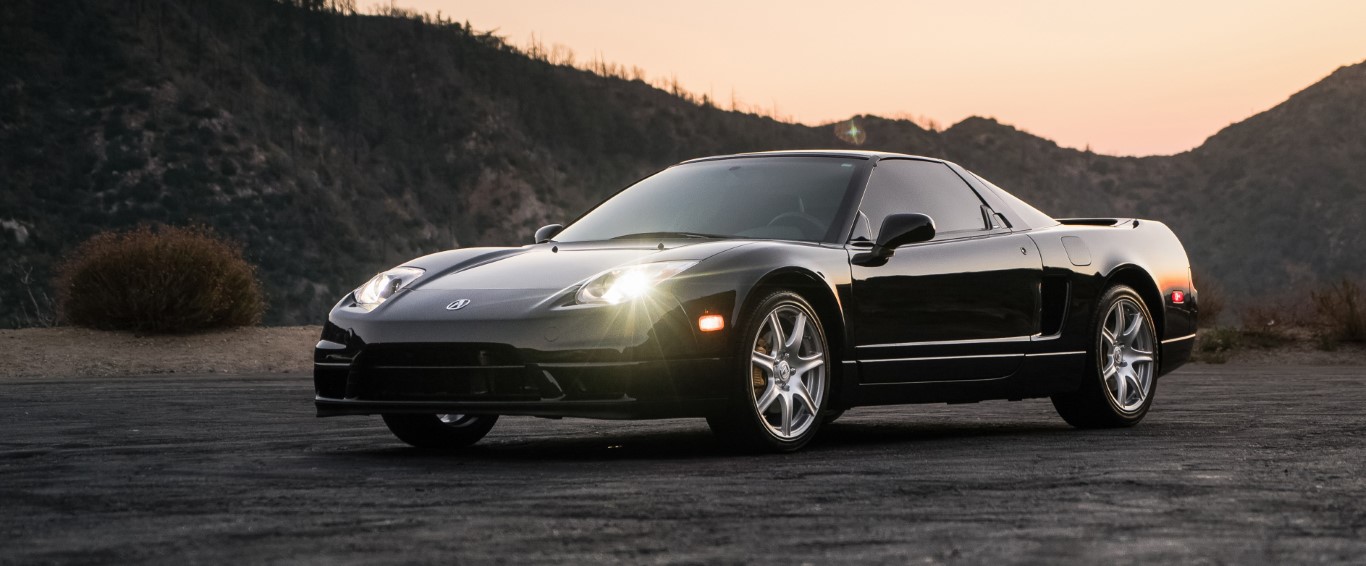

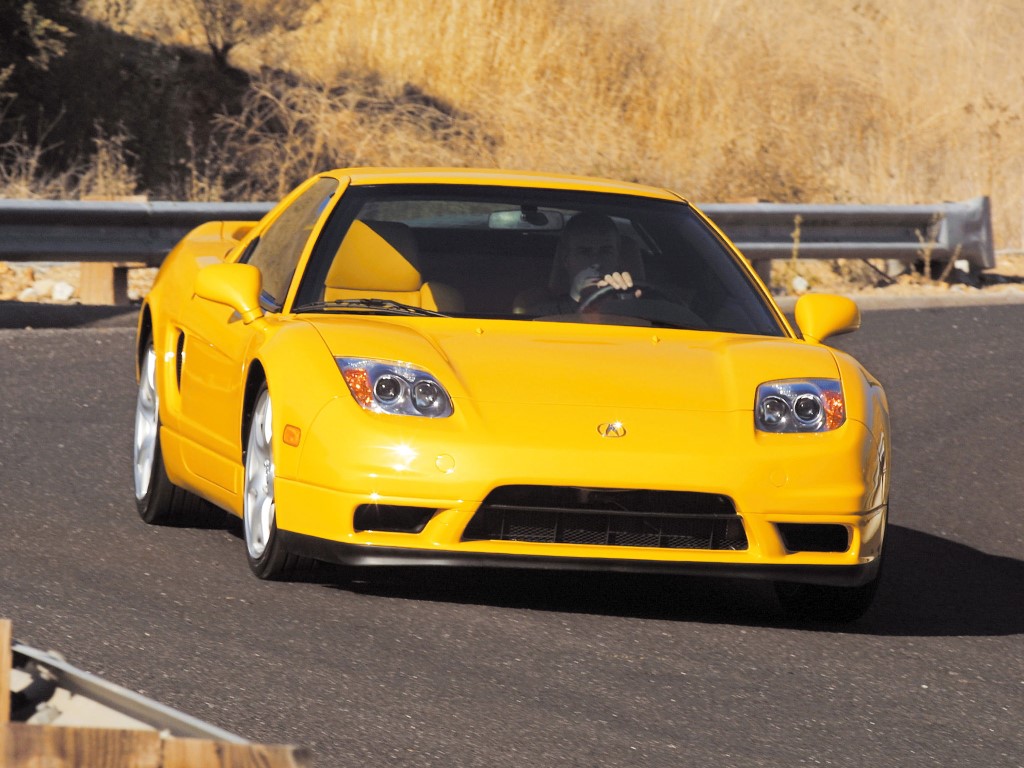

The 2002 Facelift: The End of Pop-up Headlights
In 2002, the NSX received its most radical aesthetic facelift. The iconic pop-up headlights were replaced by fixed units with high-intensity discharge (HID) Xenon bulbs. This alteration was not just visual; it aimed to improve safety in pedestrian collisions and reduce aerodynamic drag. The drag coefficient (Cd) dropped to 0.30, resulting in superior high-speed stability and a slightly higher top speed of 282 km/h.
The suspension was revised once again, adopting progressive rate springs to offer a refined balance between road comfort and rigorous track control. At the rear, a new air diffuser and redesigned exhaust outlets completed the visual package, keeping the NSX looking modern even after a decade on the market.
Powertrain Evolution: 1991 vs 1997 vs 2002
| Specification | 3.0L V6 (1991-1996) | 3.2L V6 (1997-2005) | 3.0L V6 Automatic (All) |
|---|---|---|---|
| Power | 270 hp @ 7,100 rpm | 290 hp @ 7,100 rpm | 252 hp @ 6,600 rpm |
| Torque | 210 lb-ft @ 5,300 rpm | 224 lb-ft @ 5,500 rpm | 210 lb-ft @ 5,300 rpm |
| Gears | 5-Speed Manual | 6-Speed Manual | 4-Speed Automatic |
| Acceleration 0-60 mph | ~5.2 sec | ~4.8 sec | ~5.8 sec |
Special Editions and Performance Variants
The Japanese Domestic Market (JDM) was graced with versions that took the NSX's lightweight philosophy to the extreme. The most emblematic was the NSX-R (Type R), originally launched in 1992. Aiming to create a race car for the streets, Honda removed the sound deadening, audio system, air conditioning, and replaced the leather seats with Recaro carbon-Kevlar racing buckets. The result was a 120 kg weight reduction, totaling just 1,230 kg.
In 2002, alongside the facelift, emerged the new NSX-R (NA2), which utilized the hand-balanced 3.2L engine and a body with extensive carbon fiber components, including a vented hood and rear spoiler. This model became legendary by recording Nürburgring lap times equivalent to supercars with far more power, demonstrating the superiority of its dynamic balance. Another notable variant was the NSX Type S and the Type S-Zero, the latter being a track version without an audio or navigation system, weighing only 1,270 kg, focused exclusively on driving purity.
Production Summary of Special Models (First Generation)
| Model | Model-Year | Approximate Production | Technical Highlight |
|---|---|---|---|
| NSX-R (NA1) | 1992-1995 | 483 units | 120kg reduction; track focus. |
| Alex Zanardi Ed. | 1999 | 51 units | Stiffer chassis; exclusive to the US. |
| NSX-R (NA2) | 2002-2005 | 140 to 155 units | Carbon fiber components. |
| NSX-R GT | 2005 | 5 units | Super GT homologation model. |
| Type S / S-Zero | 1997-2001 | 209 units | Stiff suspension; JDM only. |
Production Quantity and Sales Legacy (1990–2005)
The first-generation NSX had an explosive initial reception. In the early years, demand far exceeded the production capacity of the Tochigi plant. However, throughout the 1990s, sales began to decline as the competition modernized and prices rose. In total, approximately 18,685 to 18,896 units were produced worldwide during its 15 years of existence.
North America was the largest market, absorbing nearly 9,000 units under the Acura brand, closely followed by Japan, with about 7,400 units sold as Hondas. Europe received a smaller slice, with around 1,500 registered units. Despite the relatively low sales numbers compared to mass-market sports cars, the NSX retained its value due to its scarcity and reputation for extreme mechanical durability, something rare among supercars of that era.
Total Sales by Region (First Generation)
| Region | Units Sold (Approx.) | Brand |
|---|---|---|
| North America | 8,997 - 9,700 | Acura |
| Japan | 7,400 | Honda |
| Europe | 1,400 - 1,559 | Honda |
| Others (Asia/Oceania) | ~200 | Honda |
| Global Total | ~18,685 - 18,896 | - |
The Second Generation (2016–2022): The Hybrid Era
After a hiatus of over a decade, the Acura NSX returned in 2016 with a completely different technical philosophy, yet maintaining the mission of being a technological pioneer. If the first generation focused on analog simplicity and aluminum lightness, the second generation (NC1) embraced the complexity of electrification and digital torque management.
Developed primarily by Honda's North American division and manufactured at the Performance Manufacturing Center (PMC) in Ohio, the new NSX utilized a hybrid powertrain comprising a 3.5-liter twin-turbocharged V6 engine and three electric motors. The combustion engine, mounted longitudinally, worked in tandem with a rear electric motor to eliminate turbo lag, while two other independent electric motors on the front axle provided all-wheel drive and active torque vectoring.
Sport Hybrid SH-AWD System
This system, dubbed Sport Hybrid Super Handling All-Wheel Drive (SH-AWD), allowed the car to distribute power independently to each front wheel, creating an agility in corners that defied its considerable 1,768 kg weight. The transmission was a 9-speed dual-clutch unit (DCT), providing nearly instantaneous shifts and keeping the engine always in its ideal power band.
Technical Specifications: Second Generation (2017–2021)
| Attribute | Technical Detail |
|---|---|
| Combustion Engine | 3.5L V6 Twin-Turbo DOHC (JNC1) |
| Electric Motors | 3 Units (2 Front, 1 Rear) |
| Combined Power | 573 hp (581 PS) |
| Combined Torque | 476 lb-ft (645 Nm) |
| Transmission | 9-Speed Dual-Clutch (DCT) |
| Drivetrain | Hybrid All-Wheel Drive (SH-AWD) |
| Acceleration 0-100 km/h | 2.9 seconds |
| Top Speed | 307 km/h (191 mph) |
Acura NSX Type S (2022): The Swan Song
To celebrate the final year of production for the second generation, Acura launched the NSX Type S in 2022, the most powerful and fastest version ever. Limited to just 350 units worldwide, the Type S received improvements to its combustion engine, including new turbochargers shared with the NSX GT3 Evo race car, which increased peak boost pressure by 5.6%.
The electrical system was also optimized, with battery capacity increased by 20% and battery power output raised by 10%, which allowed for a more consistent performance from the electric motors. The result was a jump in combined power to 600 horsepower and 492 lb-ft of torque. Aerodynamically, the Type S boasted a new nose with larger air intakes for better cooling and a track-inspired carbon fiber rear diffuser to increase stability.
Engineering Improvements in the Type S
The 9-speed DCT transmission was reprogrammed to offer 50% faster upshifts and a new "Rapid Downshift" mode, which allowed the driver to instantly drop several gears by holding the left paddle. Split 5-spoke forged wheels and Pirelli P-Zero tires developed exclusively for the model helped the Type S complete a lap at the Suzuka circuit 2 seconds faster than the standard model.
Comparison: Standard NSX vs NSX Type S (2022)
| Feature | NSX (2017-2021) | NSX Type S (2022) | Difference |
|---|---|---|---|
| Combined Power | 573 hp | 600 hp | +27 hp |
| Combined Torque | 476 lb-ft | 492 lb-ft | +16 lb-ft |
| Turbo Pressure | 15.2 psi | 16.1 psi | +0.9 psi |
| Wheels | Cast | Specific Forged | Wider Track Width |
| Acceleration 0-60 mph | ~3.0 sec | < 2.9 sec | -0.1 to 0.2 sec |
Second Generation Production and Sales
Unlike the first generation, production of the second generation was much more restricted. Between 2016 and 2022, a total of approximately 2,908 units were produced worldwide. The vast majority of these sales occurred in the United States, where the Acura brand has its largest presence.
Annual Sales Breakdown (US)
| Model-Year | Units Sold in the US | Note |
|---|---|---|
| 2016 | 269 | First year of deliveries |
| 2017 | 581 | Sales peak |
| 2018 | 170 | Sharp drop |
| 2019 | 238 | Slight recovery |
| 2020 | 128 | Global impact (market) |
| 2021 | 124 | Type S announcement |
| 2022 | 300 | All Type S units |
| US Total | ~1,810 | - |
The exclusivity of the Type S was strict, with 300 units destined for the US and only 50 for the rest of the world, ensuring the final model became an instant collector's item. The end of production at the PMC in Ohio marked the end of an era for Acura, which now focuses its research on fully electric technologies for the next iteration of the NSX name.
The Future: Honda NSX Tribute by Italdesign (2026)
Although official production by Acura/Honda ended in 2022, the legacy of the NSX continues through design partnerships. For the year 2026, the "Honda NSX Tribute by Italdesign" was announced, an ultra-limited project celebrating the 35th anniversary of the original model. This vehicle is based on the second-generation platform but features an entirely new body that evokes the low proportions and pure design of the first generation.
The design includes subtle references to Ayrton Senna in the interior and uses a two-tone Championship White and gloss black paint job, a direct homage to the NSX-R versions of the past. With only 10 to 15 units planned for artisanal manufacturing in Italy, this project serves as a testament to the immortality of the NSX's design and engineering in the global automotive imagination.
Conclusions on the Engineering and Evolution of the NSX
The history of the Acura NSX is a lesson in how technical vision can transform a market segment. In 1990, Honda proved that supercars did not need to be punishing to be fast; the introduction of the aluminum chassis and everyday usability forever changed the trajectory of luxury manufacturers. In 2016, the second generation anticipated the high-performance hybridization trend, using electricity to enhance, not just save, the driving experience.
Although the two generations are separated by diametrically opposed technologies—one focused on mechanical purity and the other on electronic torque management—both share a commitment to ergonomics, visibility, and keeping the driver at the center of the system. The NSX remains a symbol that continuous innovation is the only way to stay relevant in such a competitive sector, leaving a legacy of precision that will continue to influence the future of high-performance electric vehicles.
