Aston Martin Vanquish Volante

The history of the Aston Martin Vanquish transcends the mere chronology of an automotive model; it narrates the very survival, stabilization, and subsequent reinvention of one of the world's most iconic brands. The name "Vanquish" (which in Portuguese means "derrotar" or "subjugar") was not chosen by chance. It represented Aston Martin's intention to reclaim its place at the top of the high-performance Grand Tourer (GT) hierarchy, challenging the hegemony of Italian and German brands at the beginning of the 21st century.

This report examines the trajectory of this extraordinary vehicle, dividing it into three distinct eras that reflect the very evolution of modern automotive engineering: the artisanal era of Newport Pagnell (Generation 1), the aluminum and carbon architecture era of Gaydon (Generation 2), and the return to the supremacy of raw power in the contemporary era (Generation 3). The following analysis details not only the mechanical specifications and production numbers but also the industrial and cultural context that allowed the Vanquish to become one of the most respected names in the industry.

The Context and the "Project Vantage" Concept

In the late 1990s, Aston Martin was under the tutelage of the Ford Motor Company. Although financial stability was guaranteed, the brand's product line, based on the Virage chassis, was aging. The cars were heavy, built with traditional methods, and struggled to compete with emerging technology from Ferrari. The brand needed a successor that would not only replace the Vantage line but redefine what an Aston Martin could be.

The answer came at the 1998 Detroit Auto Show with the unveiling of the "Project Vantage" concept. Designed by Scotsman Ian Callum, the car was a visual statement of strength. Unlike previous designs, which were conservative evolutions, Project Vantage featured muscular lines, wide haunches, and an aggressive stance that promised modern performance. The reception was so enthusiastic that the green light for production was given almost immediately, with the promise to keep the concept's design practically unchanged.

Engineering: The Aluminum Bonding Revolution

When the production V12 Vanquish was launched at the 2001 Geneva Motor Show, it brought with it a technological revolution hidden beneath its skin. It was the first Aston Martin to use a monocoque chassis built through the bonding of extruded aluminum and carbon fiber.

This technique, developed in collaboration with Lotus and Hydro Automotive Structures, abandoned traditional welding. Instead, chassis components were bonded with aerospace-grade adhesives and riveted. The result was a structure with immensely superior torsional rigidity to previous models, but with reduced weight. The central transmission tunnel was made entirely of carbon fiber, serving as the car's "backbone," connecting the front and rear and providing a solid foundation for the suspension.

The outer bodywork also innovated with the use of the "Superforming" process. In this method, aluminum panels are heated to high temperatures and molded against a single tool using air pressure, allowing the creation of complex, continuous curves that would be impossible to achieve with conventional stamping presses. This gave the Vanquish its "sculpted" appearance, where the panels seem to flow organically from one section to another without abrupt visual interruptions.

The V12 Heart and the Controversial Transmission

The Vanquish's engine was an evolution of the 5.9-liter V12 unit (often rounded to 6.0 liters) that had debuted in the DB7 Vantage. However, in the Vanquish, this engine was heavily modified to deliver performance worthy of a supercar.

• Configuration: 5,935 cc V12, 48 valves.
• Power: 460 hp (466 PS) at 6,500 rpm.
• Torque: 542 Nm (400 lb-ft) at 5,000 rpm.
• Performance: 0 to 100 km/h in less than 5 seconds; top speed of 306 km/h (190 mph).

The transmission chosen to manage this power was a six-speed automated manual gearbox (ASM - Auto Shift Manual). It is crucial to understand that this was not a traditional automatic gearbox with a torque converter. Mechanically, it was a manual gearbox, but the clutch and gear shifting were operated by an electro-hydraulic system controlled by "paddles" behind the steering wheel.

At the time, this technology was seen as derived from Formula 1 and represented the future. In practice, the transmission divided opinions. In aggressive sporty driving, shifts were fast (250 milliseconds) and thrilling. However, in low-speed maneuvers and urban traffic, the system could be jerky and hesitant, requiring a learning curve from the driver to operate smoothly. Despite the criticisms, it contributed to the visceral and mechanical character of the car.

The Newport Pagnell Era and the Artisanal Factor

A key detail in the history of the Generation 1 Vanquish is its birthplace. It was the last "Halo" (top-of-the-line) model to be produced at the historic Newport Pagnell factory. This factory operated in an almost Victorian manner compared to modern assembly lines. Each Vanquish was hand-assembled. The interior leather was cut and stitched by artisans who had worked at the company for decades.

Production at Newport Pagnell gives the Generation 1 Vanquish a special status among collectors. It represents the exact transition point where the "old school" of English craftsmanship met the "new school" of composite materials and computational design. Ending Vanquish production in 2007 also meant closing the doors of this historic factory, marking the end of a romantic era for the brand.

The Cultural Phenomenon: 007 and "Die Another Day"

The launch of the Vanquish coincided with the need to revitalize the James Bond franchise. In "Die Another Day" (2002), the car played a central role. Equipped by the "Q" branch with adaptive camouflage (which made it invisible, earning it the nickname "Vanish"), machine guns in the grille, an ejector seat, and tires with retractable spikes, the car starred in an epic chase across a frozen lake in Iceland.

Although the concept of an "invisible car" was criticized by some fans as overly fanciful, the Vanquish's presence in the film solidified its global image as the ultimate British spy car. For filming, the production team used several stunt cars that, interestingly, did not use the V12 engine, but rather Ford V8 engines and four-wheel-drive systems to ensure maneuverability on the ice. However, the "hero" cars (used for close-ups) were real Vanquishes.

In 2004, Aston Martin responded to criticisms regarding chassis dynamics and power by launching the Vanquish S. This model was not just a cosmetic facelift; it was a substantial re-engineering designed to transform the Vanquish into the fastest car in the brand's history up to that point.

Mechanical Improvements and the "Sports Dynamics" Package

The V12 engine received new cylinder heads with CNC-machined intake ports to improve airflow, new combustion chambers, and revised fuel injectors. The result was a jump in power to 520 hp (528 PS) and an increase in top speed to over 321 km/h (200 mph).

The chassis was also transformed. Aston Martin already optionally offered a package called the "Sports Dynamics Package" (SDP) for the base Vanquish, but on the S model, these improvements became standard. Changes included:

• Significantly stiffer springs and dampers to reduce body roll.
• Shorter steering arms, resulting in a 20% faster steering response.
• Front brake discs increased to 378 mm with six-piston calipers.
• Revised suspension geometry for greater lateral grip.

Visual Differences

To distinguish the S model, the front grille was rounded and received a six-horizontal-blade pattern (instead of the previous nine) to improve cooling. A more pronounced front splitter was added to reduce aerodynamic lift at high speed, and the boot lid was redesigned with a taller integrated spoiler to increase rear stability ("downforce"). The drag coefficient was reduced, allowing the car to cut through the air more efficiently.

Vanquish S Ultimate Edition (2007)

To celebrate the end of production at Newport Pagnell, Aston Martin launched the "Ultimate Edition". Limited to just 50 units, this final series is highly coveted.

• Exterior: Exclusive "Ultimate Black" paint, which under direct light revealed subtle shades of red and blue.
• Interior: High-quality semi-aniline leather, coarse contrasting stitching, black leather headliner, and black chrome accents.
• Identification: Numbered sill plaques indicating the position in the series from 1 to 50.

Generation 1 Production Summary

After a five-year hiatus, during which the DBS model occupied the top of the range, the Vanquish name returned in 2012. This time, the car was designed and built at the modern Gaydon headquarters, marking a complete break with the methods of Newport Pagnell.

The New Architecture and Carbon Fiber

The second-generation Vanquish (internal code VH310) was built on the fourth evolution of Aston Martin's VH (Vertical Horizontal) platform. The great innovation of this generation was the extensive use of carbon fiber. It was the first mass-production Aston Martin to have all body panels made of carbon fiber.

This decision was not just aesthetic; it allowed for a significant weight reduction and 25% greater torsional rigidity compared to the DBS it replaced. The use of carbon allowed designers to create shapes that would be impossible in stamped aluminum, such as the rear "Aero Duct" – a spoiler integrated into the boot lid that channels air to generate stability without the need for a high, inelegant rear wing.

The Mechanical Phases: AM11 vs. AM29

For the buyer or enthusiast, it is vital to understand that Generation 2 had two distinct mechanical phases, with very different behaviors.

• Phase 1 (2012–2014): AM11 engine (573 hp) and 6-speed automatic gearbox. Although powerful, the gearbox was considered slow compared to dual-clutch ones.
• Phase 2 (2014–2018): AM29 engine and 8-speed ZF gearbox. The new gearbox allowed shifts in 130 milliseconds, drastically improving acceleration (0-100 km/h in 3.8s) and top speed (324 km/h).

Body Variants: Coupe and Volante

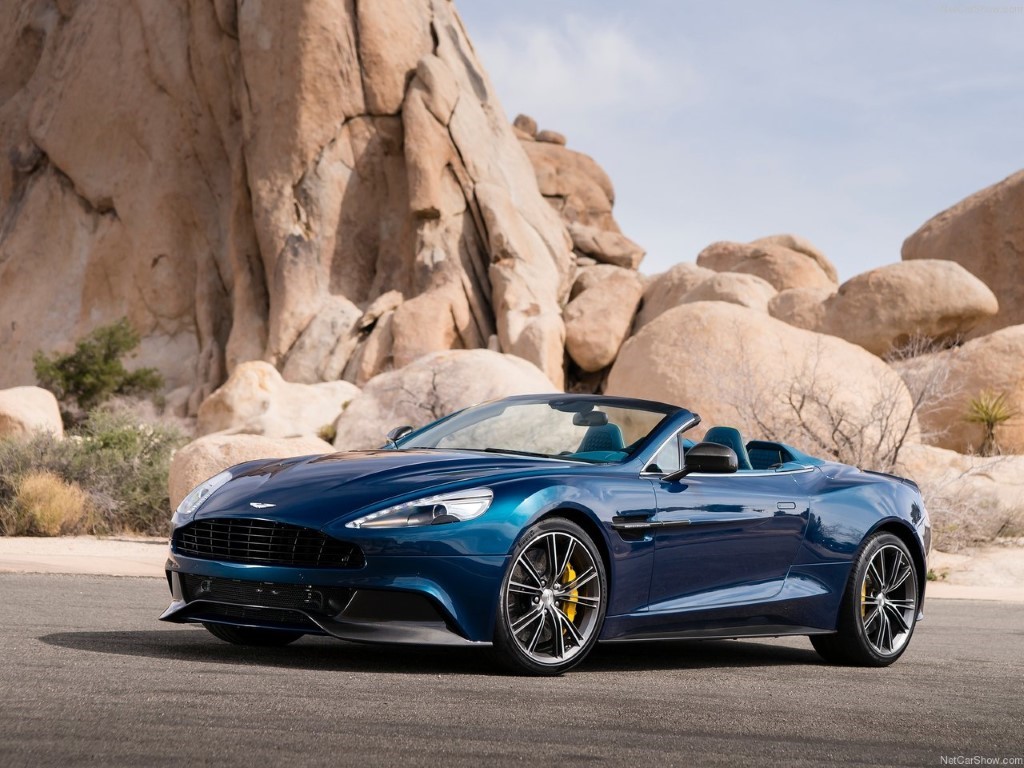

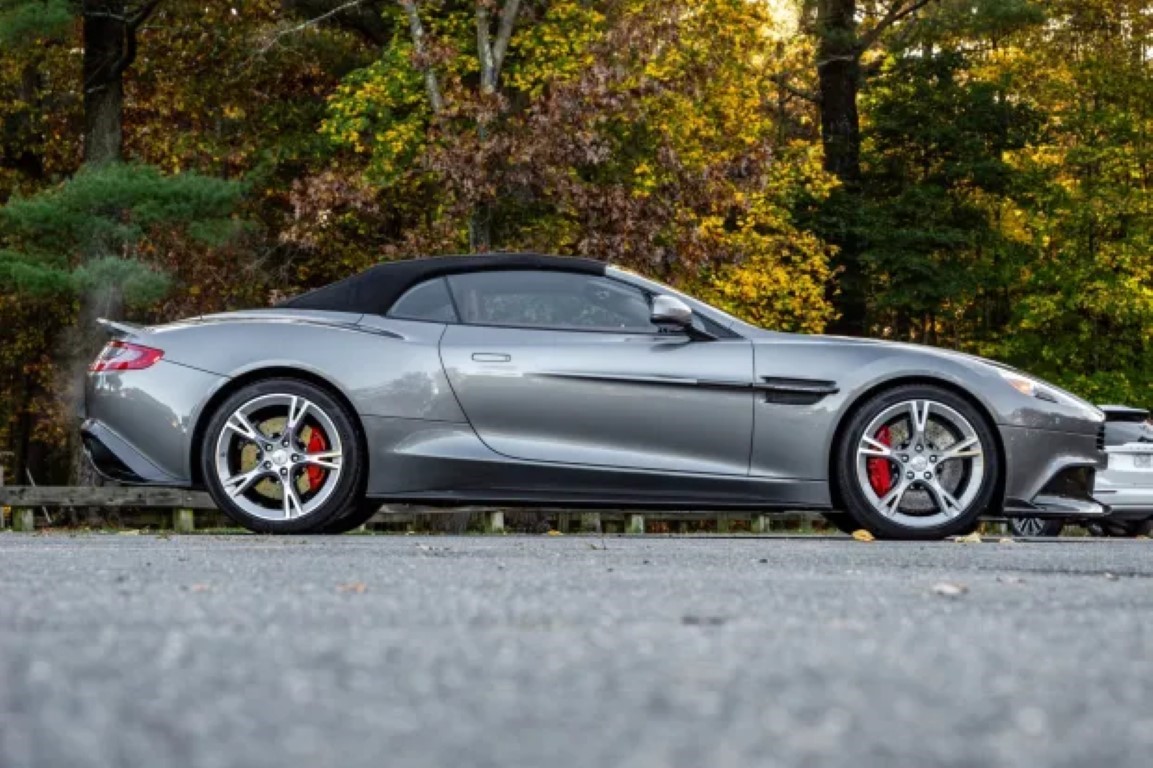

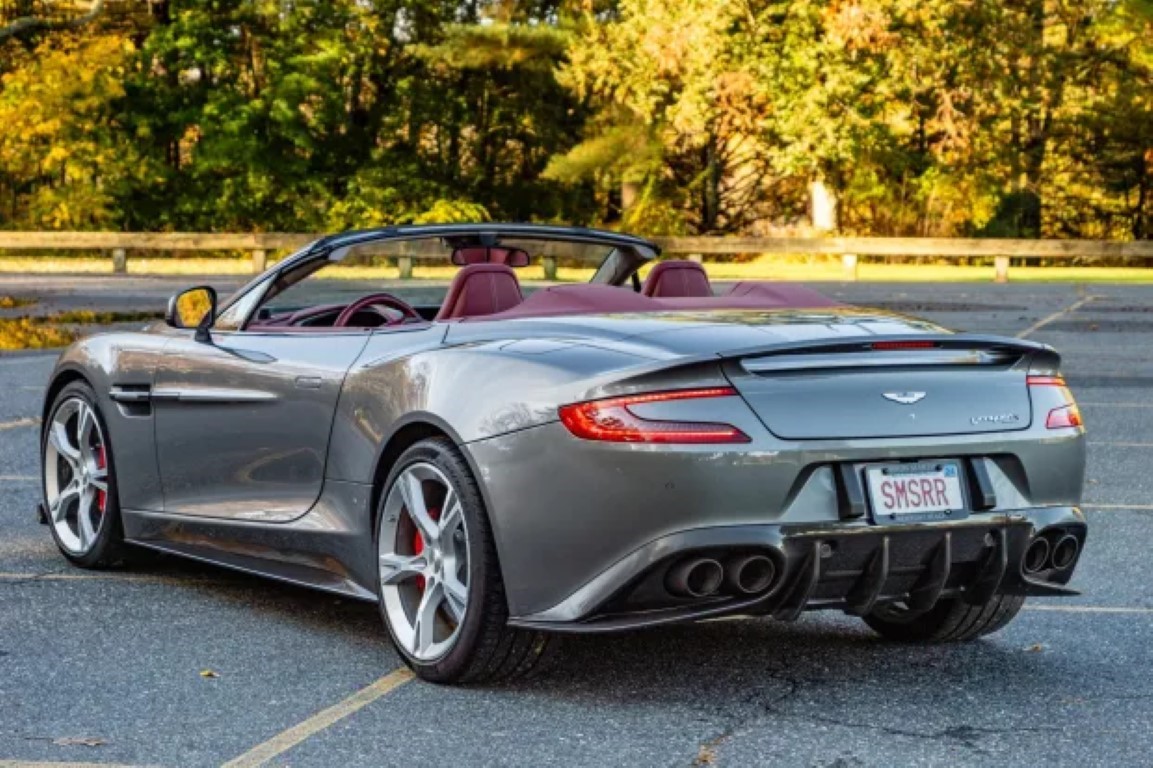

In 2013, Aston Martin introduced the Vanquish Volante, the convertible version. Thanks to the extreme rigidity of the carbon and aluminum structure, the Volante required minimal structural reinforcements, keeping weight under control. It was the brand's first convertible with a 100% carbon fiber body. The triple-layer fabric roof took just 14 seconds to open or close.

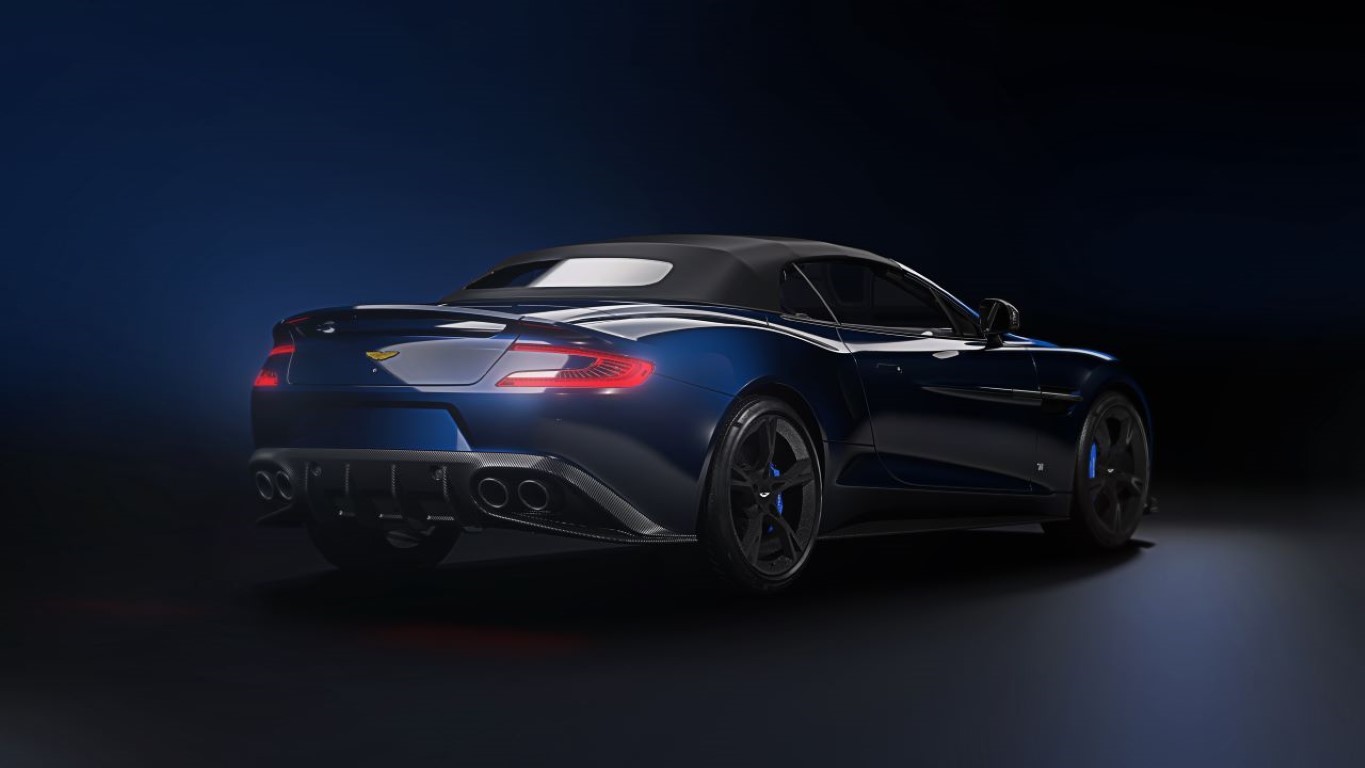

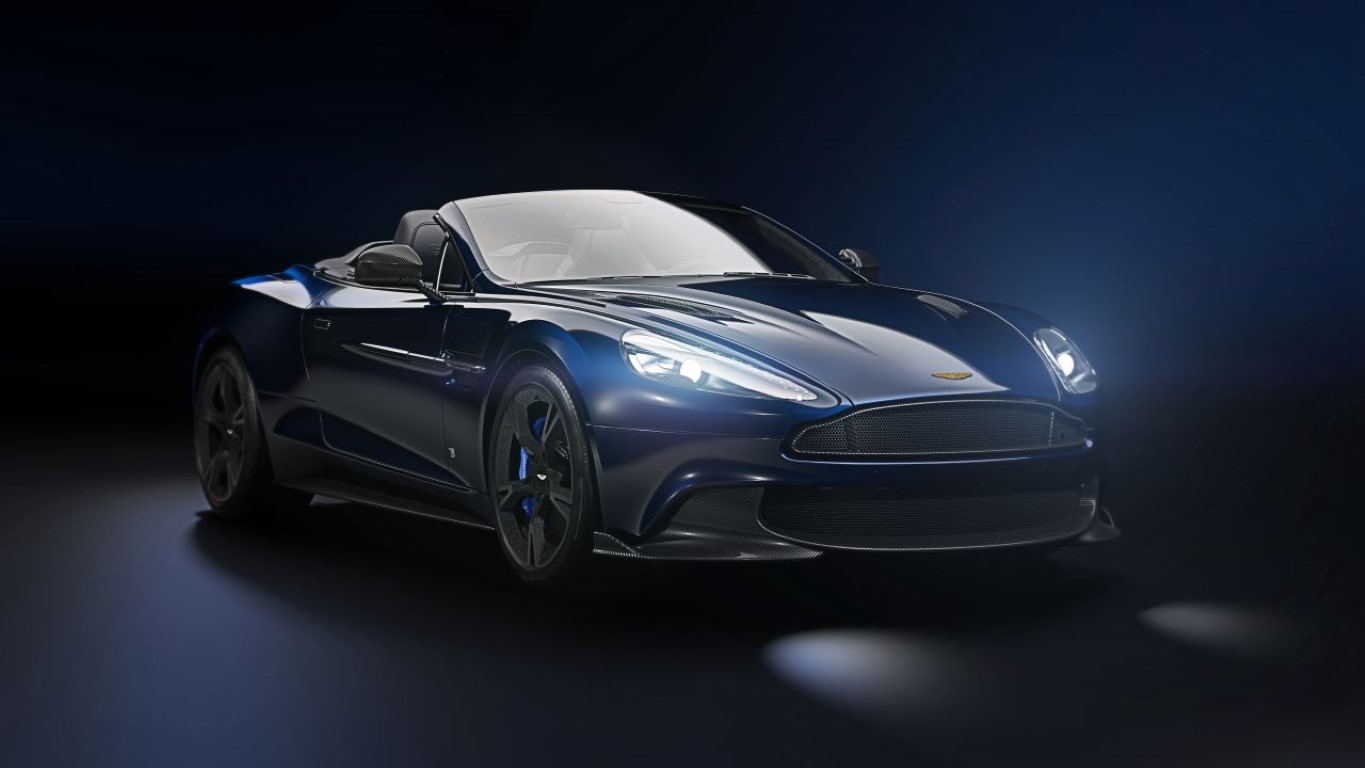

The Vanquish S (2017–2018): The Farewell to the Naturally Aspirated

The pinnacle of Generation 2 arrived in 2017 with the launch of the Vanquish S. This model represents the end of the lineage of Aston Martin's naturally aspirated V12s, making it historically significant.

• Engine: Larger intake manifolds raised power to 603 hp (595 bhp).
• Aerodynamics: Aggressive exposed carbon fiber package.
• Exhaust: New system with four outlets (quad-exhaust) for a sharper sound.

Generation 2 Special Editions

• Centenary Edition (2013): "Graduated" paint and solid silver badges. Limited to 100 units.
• The Zagato Family (2016–2019): Four variants (Coupe, Volante, Shooting Brake, Speedster) with redesigned bodies. Highly valuable.
• Vanquish S Ultimate (2018): Farewell series limited to 175 cars, with bronze or rose gold accents.

Generation 2 Production Summary

The Interlude - Ian Callum Vanquish 25 (2019)

In a rare move, original designer Ian Callum created the Aston Martin Callum Vanquish 25, an official "restomod" limited to 25 units. The project modernized Generation 1 with lowered suspension, carbon-ceramic brakes, a revamped interior, and modernized automatic or manual transmission options.

Generation 3: The Return of the King (2024–Present)

In September 2024, Aston Martin brought the Vanquish name back to replace the DBS Superleggera. The mission of Generation 3 is clear: to dominate the Super GT segment against rivals like the Ferrari 12Cilindri, reaffirming the brand's commitment to the V12 engine in an era of electrification.

Supreme Engineering: The Biturbo V12

Unlike its naturally aspirated predecessors, the new Vanquish adopts forced induction to achieve stratospheric power figures.

• Engine: 5.2 Liter Biturbo V12.
• Power: 835 hp (835 PS / 824 bhp).
• Torque: 1,000 Nm (738 lb-ft).
• "Boost Reserve" Technology: Innovation that keeps turbo pressure high to eliminate turbo lag.

Chassis Dynamics and Suspension

To control this power, the aluminum chassis was lengthened by 80mm between the axles. The suspension uses, for the first time, Bilstein DTX dampers, offering a much wider range of adjustment. The car also incorporates an electronic rear differential (e-diff).

Interior: The Digital Leap

The biggest criticism of previous models was resolved with an entirely new, proprietary electronic architecture. The system supports Apple CarPlay Ultra and retains solid metal physical buttons for critical functions, uniting tactile luxury and connectivity.

The Aston Martin Vanquish has established itself as one of the most important names in the luxury automotive industry.

• The First Generation proved that Aston Martin could survive and innovate technologically, even while using artisanal production methods.
• The Second Generation refined the aesthetics and introduced the era of composite materials, creating cars that are considered visual works of art.
• The Third Generation arrives as a statement of raw power and digital sophistication, keeping the V12 engine alive for one glorious last dance.

For those seeking the original "Bond" experience and mechanical connection, the Newport Pagnell Vanquish S is the choice. For those who value the aesthetic beauty and sound of the naturally aspirated V12, the Gaydon-era Vanquish S is unsurpassed. And for those who demand the absolute maximum in performance, the new 2025 Vanquish sets the new standard. In all its forms, the Vanquish fulfilled its promise: it vanquished time and the competition to become a legend.
