Audi A5 Sportback

The automotive industry is marked by moments of rupture where strict functionality gives way to emotional aesthetics, without, however, abandoning utility. The Audi A5 Sportback is, undoubtedly, one of these milestones. This report is dedicated to a forensic and historical analysis of this model which, designed under the tutelage of the legendary Walter de Silva, not only redefined the visual language of the Ingolstadt manufacturer but also created a vital market subsegment: the four-door (or five, technically) coupe in the mid-size luxury segment.

The A5 Sportback did not emerge in a vacuum. It was Audi's strategic response to a growing dilemma in the late 2000s: the saturation of the traditional sedan format (represented by the A4) and the impracticality of classic coupes (the two-door A5) for everyday family use. By merging the descending, sporty silhouette with the accessibility of four doors and a liftback-style trunk lid, Audi democratized the "Grand Tourer", offering a machine that served both the driver's emotion and a family's logistical need.

The following analysis dissects each phase of this evolution, from the engineering of the modular longitudinal platform (MLB) to the market nuances in Brazil, supported by global production data and detailed technical specifications.

To comprehend the A5 Sportback, it is imperative to understand the engineering that supports it. The model was one of the main beneficiaries of the MLB (Modularer Längsbaukasten) architecture, introduced with the B8 family.

The Engineering of the MLB Platform (B8)

Prior to the B8 generation, Audi vehicles with longitudinal engines suffered dynamic criticism due to the engine positioning too far ahead of the front axle, which generated an unfavorable weight distribution and a natural tendency to understeer.

The MLB platform solved this fundamental engineering problem:

• Differential Repositioning: The differential was moved in front of the clutch (or torque converter), allowing the front axle to advance by about 154 millimeters.
• Wheelbase: The wheelbase was lengthened to 2,810 mm in the Sportback, resulting in shorter front overhangs and improved weight distribution, approaching the ideal balance, while still maintaining primary front-wheel or Quattro all-wheel drive.

The Aesthetic Concept and Global Launch

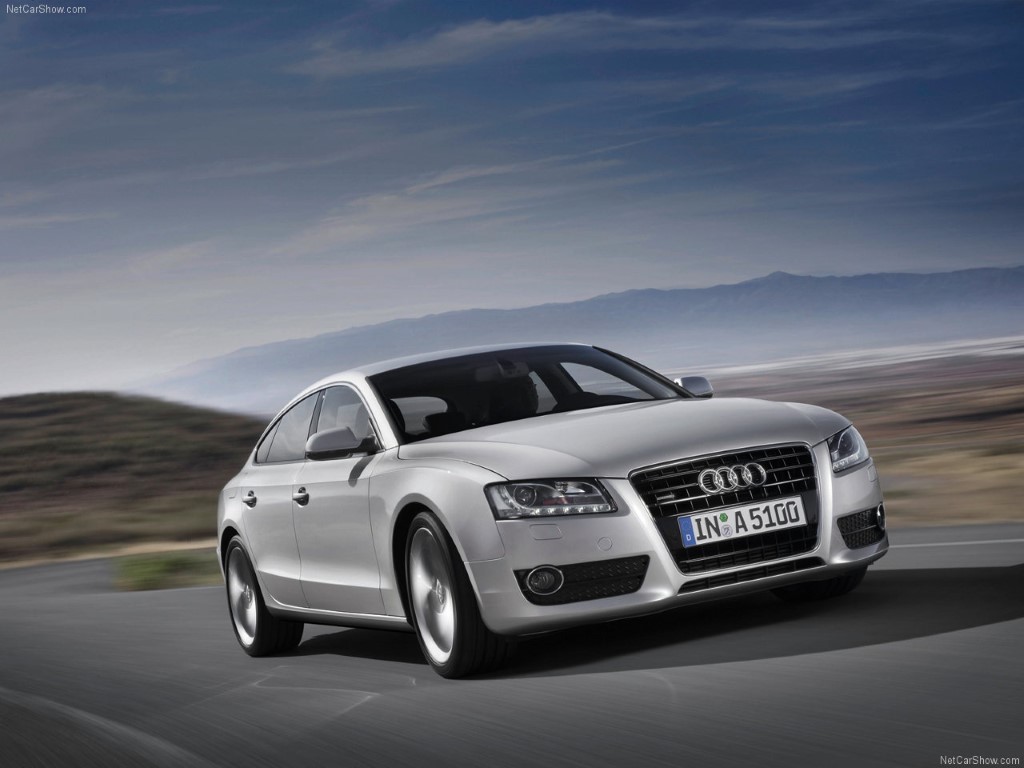

The A5 Sportback (factory code 8T8) was revealed in 2009, two years after the Coupe. The design was characterized by the "Waveline", a prominent lateral crease that flowed from the headlights to the taillights, conferring muscularity to the fenders. Unlike the A4 sedan, the Sportback had a reduced height (1,391 mm), frameless windows on all four doors, and a C-pillar that extended smoothly to the rear extremity, disguising the hatchback functionality.

The Arrival in Brazil: Strategy and Initial Versions (2010-2011)

In the Brazilian market, the A5 Sportback was launched in 2010 as a status symbol, positioned above the A4 and below the A6. Audi do Brasil's strategy focused on two fronts: volume with turbo engines and prestige with V6 engines.

Analysis of Launch Versions (2010)

Technical Insights:

• The Multitronic Controversy: The entry-level version utilized the Multitronic CVT (Continuously Variable Transmission). Although efficient for highway consumption, this gearbox was criticized by purists due to the "slipping" sensation and lack of direct connection during acceleration, something contradictory to the "Sport" proposal of the Sportback name. Furthermore, the Multitronic had torque limitations, which prevented its use in stronger engines or with Quattro drive.
• The 3.2 FSI V6 Engine: A transitional unit. It was a smooth and progressive engine, but heavy and less efficient than the future turbo engines. It utilized the Audi Valvelift system to optimize intake but would soon be replaced by the 3.0 TFSI (supercharged V6).

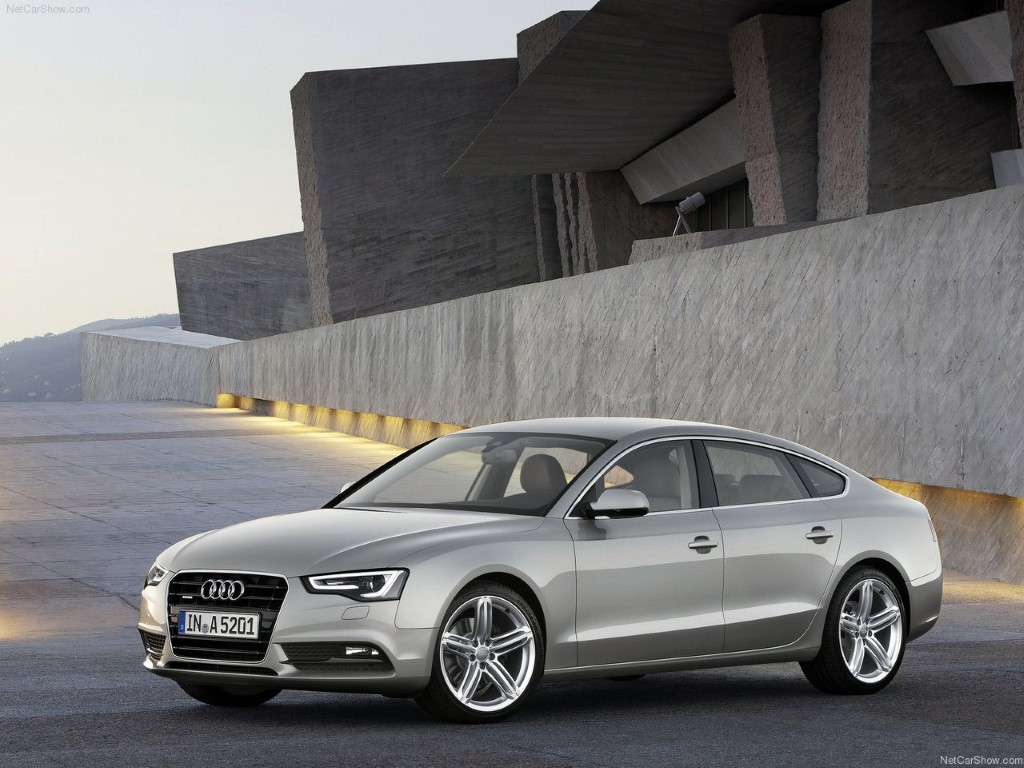

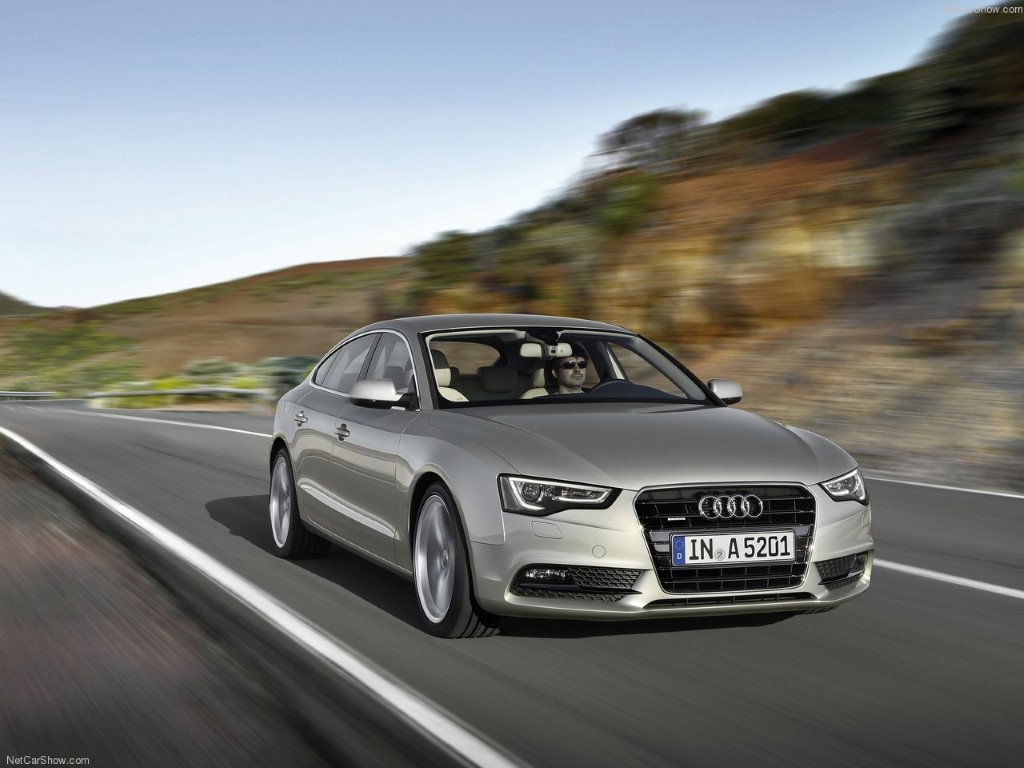

The 2012 Facelift (B8.5): Mechanical Refinement

In 2012, Audi applied a mid-life update (B8.5) that was crucial for the longevity of the first generation. The changes transcended aesthetics.

Mechanical and Aesthetic Evolution:

• Electromechanical Steering: The replacement of hydraulic steering with electric was a milestone. In addition to reducing fuel consumption (as it does not constantly drain engine power), it allowed the introduction of active assistants, such as Active Lane Assist.
• Visual Identity: The rectangular headlights gave way to wedge-shaped optical clusters with a continuous LED signature, creating a more aggressive "look". The Singleframe grille gained chamfered corners.
• 1.8 TFSI Engine: To make the model more accessible and combat currency devaluation in Brazil, Audi later introduced (around 2014) the 170 hp 1.8 TFSI engine in the Attraction version. This engine, although smaller, maintained high torque (320 Nm) thanks to the turbo and direct injection, offering surprising performance for its displacement.

Post-Facelift Versions Table (Brazil 2012-2016):

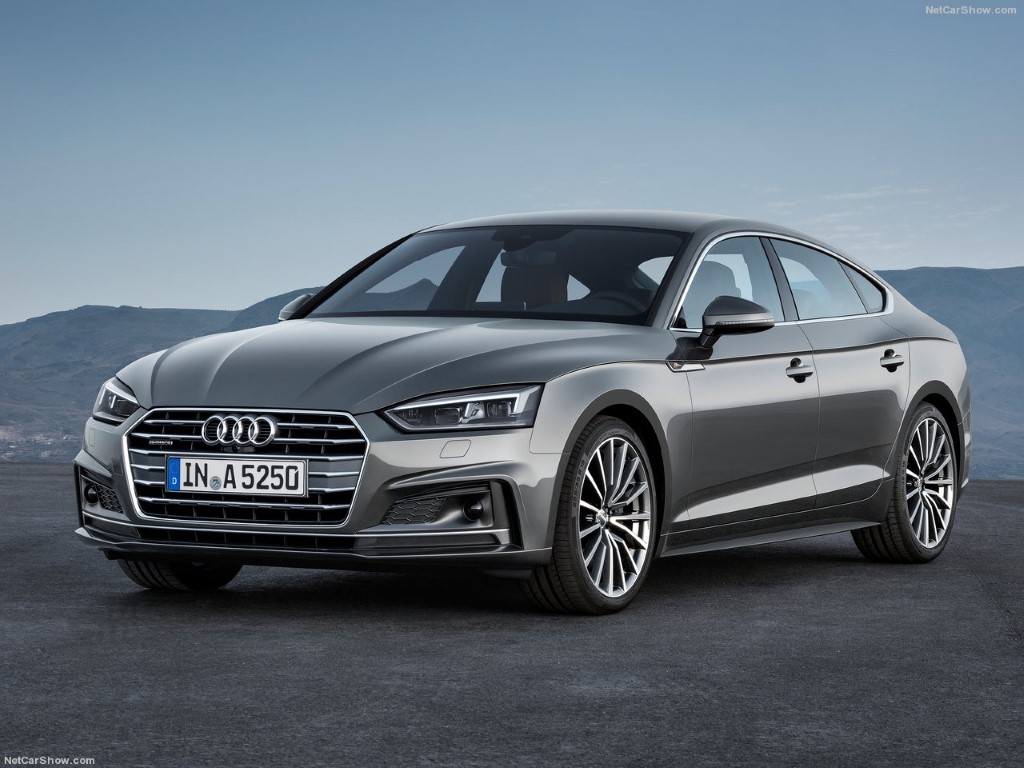

The second generation, built on the evolution of the platform (MLB Evo), represented a leap in technological sophistication and thermodynamic efficiency. Launched in Europe in 2016 and in Brazil in 2017, it maintained the proportions but sharpened the lines.

MLB Evo Architecture and Weight Reduction

The MLB Evo utilized a smart mix of materials (aluminum, ultra-high-strength steel, and magnesium) to reduce the total vehicle weight by up to 60 kg, despite the increase in dimensions and the amount of electronic equipment. The front suspension became a redesigned five-link setup, separating longitudinal and transverse forces to improve comfort and precision.

Launch Strategy in Brazil (2017)

The national launch in 2017 was aggressive, with four distinct configurations, all based on the 2.0 TFSI engine, but with radically different calibrations.

The 2.0 TFSI B-Cycle (Miller) Engine The great technical innovation was the 190 hp engine (used in the Attraction and Ambiente versions). It operates under what Audi calls the "B-Cycle", a variation of the Miller Cycle.

• Mechanism: The intake valves close well before the piston reaches bottom dead center (BDC) during intake. This creates an effective compression stroke that is shorter than the expansion stroke.
• Result: An extremely high geometric compression ratio (11.7:1) for a turbo engine, allowing it to extract maximum energy from the fuel. In practice, this engine delivers economy car fuel consumption (averages of 11 to 13 km/l on the highway) with sports car torque (320 Nm).

The End of the CVT and the Rise of the S-Tronic The second generation definitively eliminated the Multitronic gearbox. All versions, including front-wheel-drive ones, began using the 7-speed S-Tronic transmission (oil-bathed dual-clutch). The front-wheel-drive version uses the DL382 gearbox, optimized for efficiency and low CO2 emissions.

Launch Versions and Prices (Brazil 2017):

• Attraction (R$ 189,990): 190 hp. Focused on fleet owners and entry into the brand. Ambiente (R$ 213,990): 190 hp. Introduced the Audi Virtual Cockpit (100% digital 12.3" dashboard) and MMI Plus navigation.
• Ambition (R$ 239,990): 252 hp. Conventional Otto cycle engine, focused on performance. 0-100 km/h in about 6 seconds. Quattro drive. Ambition Plus (R$ 268,990): 252 hp. Complete package with Full LED Matrix headlights and advanced driving assistants.

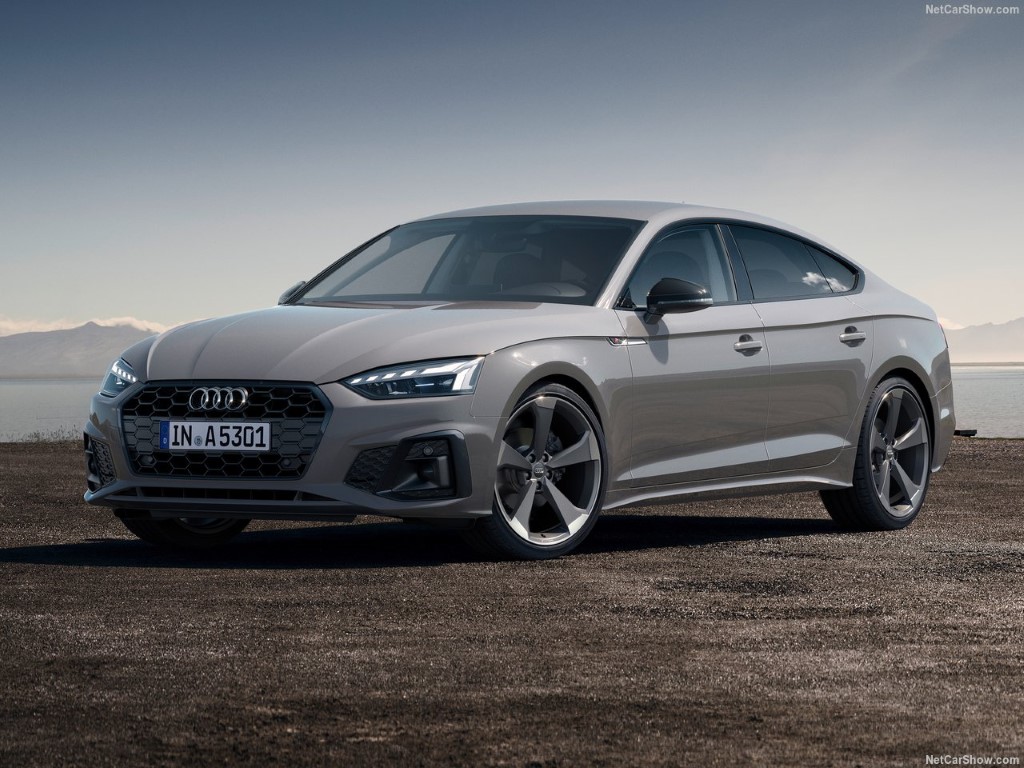

The 2020 Facelift (B9.5) and Mild Electrification (MHEV)

In 2020, the model received its mid-life update. Visually, changes focused on the front grille (wider and flatter) and the trapezoidal exhaust outlets. Inside, the MMI rotary push-button was eliminated in favor of a 10.1-inch touchscreen with haptic and acoustic feedback.

Mild Hybrid Technology (MHEV): The biggest invisible change was the introduction of the 12-volt mild hybrid system across all 2.0 TFSI powertrains. A belt alternator starter (BAS) connects to the crankshaft, allowing:

• Kinetic energy recovery during braking (up to 5 kW).
• "Coasting" Function: The engine can shut off completely at cruising speeds (between 55 and 160 km/h) when the driver takes their foot off the accelerator, keeping electrical systems active via an additional lithium-ion battery.
• Enhanced Start-Stop: The engine shuts off even before the car comes to a complete stop (below 22 km/h).

New Version Nomenclatures (2020+): Audi reorganized the names to reflect global power output ranges:

• 40 TFSI: Former 190 hp (now adjusted to 204 hp). Versions: Prestige and Prestige Plus.
• 45 TFSI: Former 252 hp (adjusted to 249 hp or 261 hp). Version: Performance Black.

The A5 Sportback lineage has branches focused on pure performance, which transform the executive sedan into a track machine capable of rivaling supercars.

Audi S5 Sportback: The Fast Grand Tourer

The S5 is the balance between daily comfort and aggressive sportiness.

• Generation 1 (8T): Equipped with a 3.0 V6 TFSI engine with a Supercharger (Roots mechanical compressor). Unlike turbos, the compressor is driven by the crankshaft, eliminating lag and delivering 333 hp in a linear fashion. The gearbox was the 7-speed S-Tronic.
• Generation 2 (F5): A radical shift in philosophy. The engine became a 3.0 V6 Turbo (Twin-Scroll), with the turbine mounted inside the "V" of the engine (Hot-V) for quick response. Power climbed to 354 hp and torque to 500 Nm. Interestingly, Audi swapped the dual-clutch gearbox for a conventional 8-speed Tiptronic automatic (ZF 8HP), capable of better handling the high torque during hard launches.

Audi RS5 Sportback: The Apex of Engineering

The RS5 Sportback (available only on the B9/F5 platform) is developed by the Audi Sport GmbH division.

• Porsche Heart: Uses a 2.9 V6 Biturbo engine shared with the Porsche Panamera 4S. It generates 450 hp and a brutal 600 Nm of torque.
• Performance: Accelerates from 0 to 100 km/h in 3.9 seconds. Top speed can be unlocked to 280 km/h.
• Market: Launched in Brazil with prices over R$ 600,000, competing with the BMW M3 and Mercedes-AMG C63.

Audi do Brasil utilized limited editions to maintain interest in the model during its lifecycle.

A5 Sportback Carbon Edition (2023)

In May 2023, a highly exclusive series was launched for Brazil, limited to 50 units.

• Base: A5 Sportback 40 TFSI (204 hp).
• Differentiators: The focus was purely aesthetic and exclusive. The mirror caps and rear spoiler (on the trunk lid) were made of genuine carbon fiber. The car featured the extended "Black" package (black logos and grilles) and 19-inch Audi Sport wheels with red brake calipers.
• Price: R$ 397,990 at launch. This version served to test the model's price elasticity among an audience that values factory personalization.

Analysis of the Volkswagen AG and Audi AG annual reports reveals that the Sportback was not just a lineup complement, but the savior of the A5 family. While coupe sales collapsed globally over the last decade, the Sportback maintained healthy volumes.

Comparative Production Volume (Global)

The table below compiles data extracted from official financial reports, illustrating the dominance of the Sportback body style over the other variants (Coupe and Cabriolet).

Data Analysis

• The Death of the Coupe: Between 2014 and 2020, A5 Coupe production fell from 35,000 to just 6,000 units annually. This confirms the global trend of rejecting two-door cars, seen as inconvenient.
• Sportback Resilience: Even with the "SUV fever" (with the Q5 selling over 300,000 units/year), the A5 Sportback maintained a loyal niche of approximately 40,000 to 70,000 annual buyers who reject the driving dynamics of a sport utility vehicle.

The year 2024 marked the end of an era and the beginning of another with the reveal of the third generation, which brings a fundamental change in Audi's nomenclature.

The New Naming Strategy

To clarify its transition to electrification, Audi defined a new rule:

• Even Numbers (A4, A6, Q4, Q6): Will be exclusively 100% electric vehicles (e-tron).
• Odd Numbers (A5, A7, Q5, Q7): Will keep internal combustion engines (with hybridization).

The A5 as the Successor to the A4

As a direct consequence of this rule, the combustion A4 sedan ceased to exist. The New Audi A5 (B10) assumes the role of the brand's primary mid-size sedan. Based on the new PPC (Premium Platform Combustion) platform, the new model will be offered globally. The crucial detail is that the new "A5 Sedan" adopted the liftback-style tailgate of the old Sportback. In other words, the Sportback concept won the internal design battle: it became the standard, eliminating the traditional three-box sedan from the combustion A5/A4 lineup.

This new model grew in all dimensions, offering more legroom and shoulder room, and introduced a new electronic architecture ("Digital Stage") focused on high-resolution screens for the driver and passenger.

Conclusion

The trajectory of the Audi A5 Sportback is a case study in adaptation and survival in the premium segment. What started in 2009 as a risky design bet – to fill a niche between the sedan and the coupe – ultimately became the backbone of Audi's presence in the D-segment.

Production data proves that the versatility of the Sportback (4 doors + ample trunk) was the decisive factor that allowed the "A5" name to survive the extinction of coupes. For the Brazilian market, the model consolidated itself as the rational choice for the enthusiast: it offers German driving dynamics, cutting-edge technology (especially with the Miller cycle and Quattro Ultra drive), and an aesthetic that ages remarkably well.

With the arrival of the B10 generation, the legacy of the Sportback is definitively cemented: it ceases to be a niche variant to become the standard format for Audi's combustion luxury automobile for the coming decades.
