Audi S8 D5

The history of the luxury automobile at the end of the 20th century was marked by a clear dichotomy: on one side, the supreme comfort and isolation offered by traditional brands; on the other, the raw performance of sports vehicles. Audi, in a strategic attempt to redefine its position in the global prestige market, challenged this separation with the launch of the S8 line. This report analyzes the trajectory of this iconic model, which not only served as the engineering standard-bearer for the Ingolstadt brand, but also introduced fundamental technologies that would shape the industry, such as the Audi Space Frame (ASF) construction and direct injection in high-displacement engines.

The S8 was not conceived merely as a more powerful version of the A8 sedan. It was an engineering exercise focused on solving the inherent problem of large luxury sedans: weight. While Mercedes-Benz (S-Class) and BMW (7 Series) relied on conventional steel and massive displacement engines to guarantee performance, Audi opted for an approach of "intelligent lightweighting". The extensive use of aluminum, combined with the quattro all-wheel-drive system, created a unique value proposition — a car capable of transporting executives with maximum comfort, but with the agility and grip of a rally vehicle on winding roads.

This document dissects the four generations of the model (D2, D3, D4, and D5), exploring the mechanical nuances, design decisions, production numbers, and the cultural impact of each iteration. The analysis is based on technical data, sales reports, and expert reviews to provide a comprehensive overview of the S8's evolution.

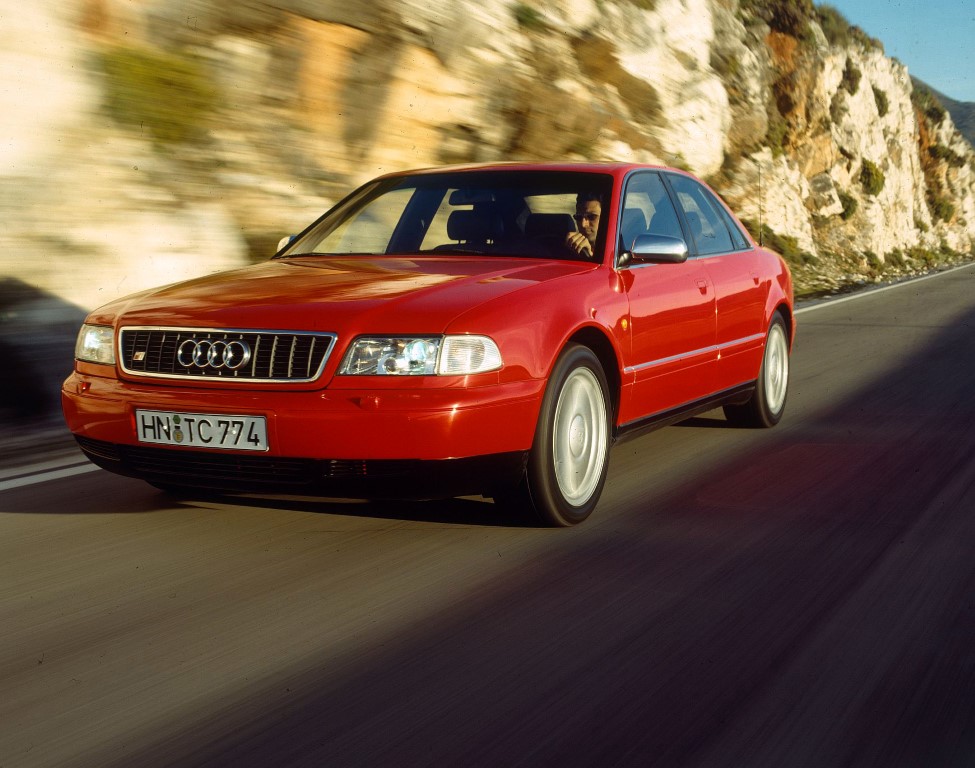

The Audi Space Frame (ASF) Concept

The launch of the original Audi S8 in 1996 (1997 model year in some markets) was the culmination of more than a decade of research and development initiated by Ferdinand Piëch. The basis of the S8, the D2 platform, was the first mass-production application of the Audi Space Frame technology. Unlike traditional steel monocoque construction, where stamped panels bear the load, the ASF uses a structure of extruded and die-cast aluminum beams and nodes, to which the body panels are then attached.

This architecture gave the S8 D2 exceptional torsional rigidity for its time, fundamental for dynamic behavior and acoustic isolation. More importantly, it allowed for a drastic weight reduction. The S8 D2 weighed approximately 1,730 kg. To put this number into perspective, its contemporary competitors equipped with V8 engines and rear-wheel drive (without the additional weight of front and center differentials) frequently weighed the same or more. This weight advantage was crucial to offset the mass of the quattro all-wheel-drive system, allowing the S8 to maintain an agility that belied its dimensions of more than 5 meters.

Evolution of the 4.2-Liter V8 Engine

The heart of the S8 D2 was always a naturally aspirated 4.2-liter V8 engine, but its technical configuration evolved significantly during the model's lifecycle, dividing production into two distinct phases.

Phase 1: The 32-Valve Engine (1996–1999)

In the early years of production, the S8 was equipped with the AHC or AKH code engine. This aluminum block used a four-valve-per-cylinder configuration (32 valves in total) and dual overhead camshafts (DOHC).

• Performance: It produced 340 hp (250 kW; 335 bhp) and required high revs to deliver its maximum potential.
• Behavior: The power delivery was linear, but critics noted that the engine needed to be 'worked' above 4,000 rpm to clearly distinguish itself from the standard A8 4.2 V8.
• Transmission: During this period, the car was available with a 5-speed ZF automatic transmission (Tiptronic) or, in the European market, with a 6-speed manual gearbox.

Phase 2: The 40-Valve Engine (1999–2003)

In 1999, coinciding with a visual facelift, the engine received a profound technical update. Audi introduced cylinder heads with five valves per cylinder (three intake and two exhaust), totaling 40 valves. This motorsport-derived technology aimed to improve the engine's 'breathing' at high RPMs and combustion efficiency.

• Power Gains: Power rose to 360 hp (265 kW; 369 PS) in Europe, with a corresponding increase in throttle response.
• Acceleration: The 0 to 100 km/h time dropped significantly. The manual version, now even more desirable, could hit the mark in about 5.4 to 5.5 seconds, while the automatic recorded 6.6 seconds in conservative measurements or 5.6 seconds in updated ideal conditions.
• Reliability: This 40-valve engine proved to be robust, capable of withstanding high mileages (over 300,000 km) if the maintenance of the timing belts and tensioners was rigorous.

The Drivetrain System and Driving Dynamics

The fourth-generation quattro system used in the S8 D2 was based on a Torsen (torque-sensing) center differential. Under normal grip conditions, the power distribution was 50:50 between the front and rear axles. This mechanical and permanent configuration provided unwavering safety in adverse weather conditions, a significant competitive advantage against rear-wheel-drive rivals from BMW and Mercedes-Benz, which at the time relied heavily on intrusive electronic traction controls.

The S8's suspension was lowered by 20 mm compared to the standard A8 and equipped with 30-40% stiffer springs and shock absorbers. Thicker anti-roll bars reduced body roll in corners. The result was a 'large sedan' that behaved like a compact sports car. The steering, although sometimes criticized for being too light at low speeds (a characteristic of the Servotronic assistance of the time), gained weight and precision with speed.

Exterior and Interior Design: Discretion as a Virtue

The design of the S8 D2 is frequently cited as one of the high points of Audi aesthetics. Under the direction of Hartmut Warkuss, the lines were clean, without unnecessary adornments. The differentiation of the S8 model was subtle, known internally as the 'Wolf in Sheep's Clothing' principle:

• Aluminum Mirrors: The solid aluminum rearview mirror caps (not painted plastic in the early units) became an immediate visual signature of the S and RS line.
• Avus Wheels: The 18-inch six-spoke alloy wheels ('Avus' style) were exclusive and became iconic.
• Interior: The cabin focused on ergonomics and material quality. Recaro sports seats with multiple power adjustments, a three-spoke sports steering wheel, and carbon fiber or high-density wood trims were standard. The instrument panel maintained analog clarity, with the red lighting characteristic of Audi Sport.

The Manual Transmission: The Production 'Unicorn'

One of the most unique aspects of the S8 D2 is the existence of a version with a 6-speed manual transmission.

• Availability: This option was offered almost exclusively in European markets. North America (USA and Canada) received only the 5-speed Tiptronic automatic transmission.
• Driving Experience: The manual gearbox radically transformed the character of the car. It allowed the driver to explore the V8's rev range up to the 7,000 rpm limiter and offered direct control over the vehicle's mass transfer. Today, these units represent a minuscule fraction of the used market and command significant premium prices.
• Numbers: Although Audi does not publish the exact breakdown, enthusiast estimates and club records suggest that manual versions account for less than 10-15% of total S8 D2 production, making them extremely rare.

Cultural Impact: The Ronin Effect

It is impossible to narrate the history of the S8 D2 without mentioning the film Ronin (1998), directed by John Frankenheimer. The film presented the S8 as the ultimate getaway vehicle in one of the most realistic car chases in cinema history. The scenes demonstrated the S8's ability to maneuver through narrow Paris streets and dirt roads, cementing its reputation for durability and performance. The director specifically chose the car for its ability to gain traction on slippery surfaces where other rear-wheel-drive cars would fail.

Production and Market Summary (D2)

Production of the S8 D2 ended in September 2002, although sales continued into 2003 in some markets to clear stock. The total production volume of the D2 chassis (A8 and S8 combined) surpassed 100,000 units, but the S8 represented a high-performance niche, with estimated numbers in the low tens of thousands globally over 7 years.

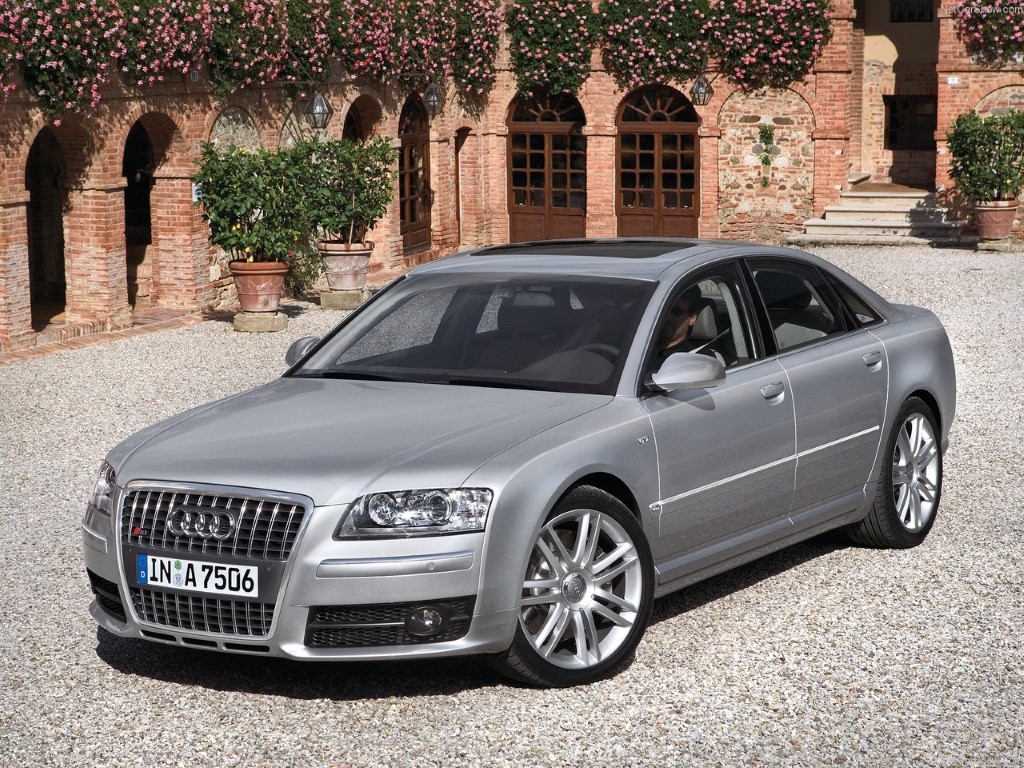

Paradigm Shift

After a three-year hiatus, the successor to the S8 arrived in 2006 with a different mission. The market had changed; competitors like the BMW M5 (E60) had adopted Formula 1-inspired V10 engines. Audi, now the owner of Lamborghini, decided to leverage this synergy to create an engine that would define the D3 generation.

The 5.2 FSI V10 Engine: Separating Myth from Reality

The engine of the S8 D3 is often called the "Gallardo engine", a simplification that hides a fascinating and distinct engineering.

• Origin: The engine is a 5.2-liter V10 with Fuel Stratified Injection (FSI).
• The Lamborghini Relationship: The original 5.0-liter V10 of the Lamborghini Gallardo had a cylinder bore spacing of 88 mm. When Audi decided to use a V10 in its sedans (S6 and S8), it needed the engine to be manufactured on its standard assembly lines, which required a 90 mm bore spacing. Thus, Audi redesigned the block, increasing the spacing and, consequently, the displacement to 5.2 liters (5204 cc).

Crucial Differences:

• Crankshaft: The S8 uses a split-pin crankshaft to ensure even firing intervals and smoothness, whereas Lamborghini used a configuration focused on high revs.
• Lubrication: The S8 uses a wet sump, suitable for regular maintenance, while the Gallardo used a dry sump to prevent oil starvation in high-G track corners.
• Injection: The S8 pioneered the use of FSI technology in this block, which allowed a very high compression ratio (12.5:1), resulting in greater thermal efficiency.
• Performance: In the S8, this engine produced 450 hp (331 kW) at 7,000 rpm and 540 Nm of torque. The focus was shifted from maximum power at high revs (like in the supercar) to torque availability in the mid-range, essential for moving the 1,940 kg sedan.

Dynamics and Chassis: The Introduction of Air Suspension

Unlike the D2, which used conventional coil springs, the S8 D3 adopted Adaptive Air Suspension as standard. However, for the S model, Audi developed a specific "Sport" calibration.

• Operation: The system continuously adjusted the firmness of the shock absorbers and the ride height. At highway speeds, the car automatically lowered to improve aerodynamics and stability.
• Ceramic Brakes: The D3 was the first S8 to offer carbon-fiber ceramic brakes as an option. These massive discs offered virtually infinite fade resistance in road use and drastically reduced unsprung mass (about 5 kg less per wheel), improving steering response.

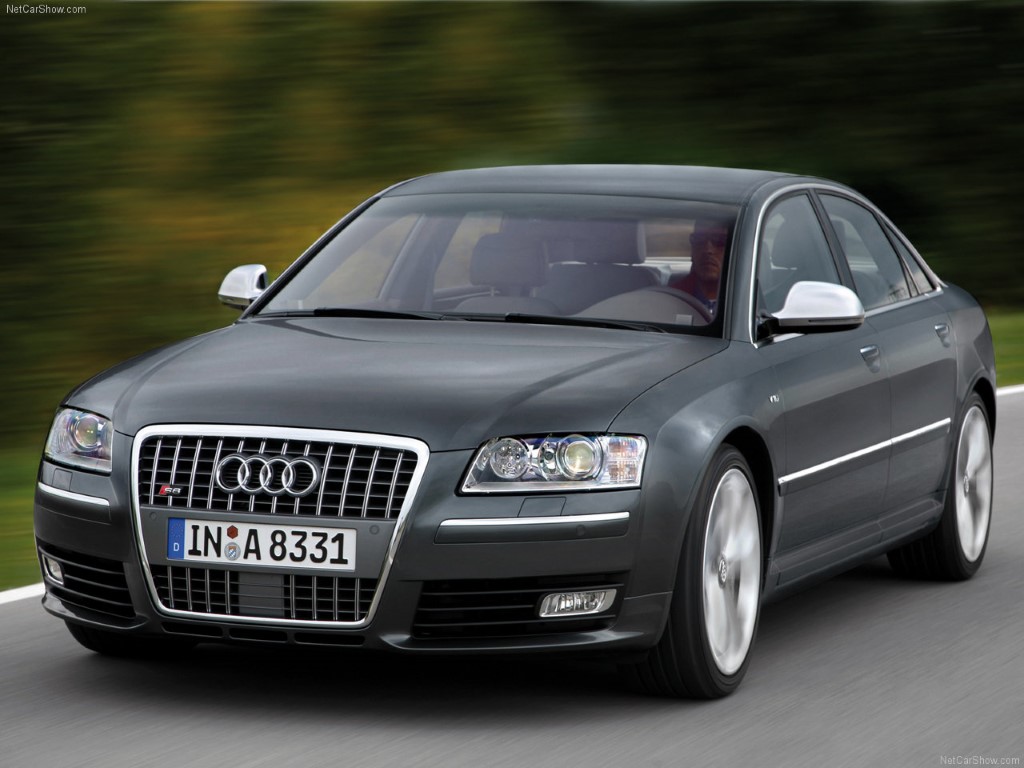

Design and Aesthetics

The D3 introduced the deep trapezoidal "Singleframe" grille that became the face of modern Audi. On the S8, this grille featured dual vertical chrome bars ("platinum grey"), distinguishing it from the A8.

• Rear: Quad oval exhaust outlets became the standard for "S" models from this generation onwards.
• Interior: The D3 cabin is frequently cited as a high point in build quality, with the MMI (Multi Media Interface) system centralizing controls on a retractable screen on the dashboard. The use of Bang & Olufsen audio with motorized tweeters that emerged from the dash added an unprecedented level of technological theater.

Production and Sales Data (D3)

The S8 D3 was produced between 2006 and 2010. US sales data shows that the best years for the A8/S8 family in this generation were 2006 and 2007, with about 5,000 to 3,800 units sold annually (range total). The S8, being the top of the line (only below or alongside the W12 in price), represented a smaller slice, making it a relatively exclusive vehicle. The complexity of the V10 engine and the associated maintenance costs kept this model as a choice for connoisseurs, limiting its massification in the used market.

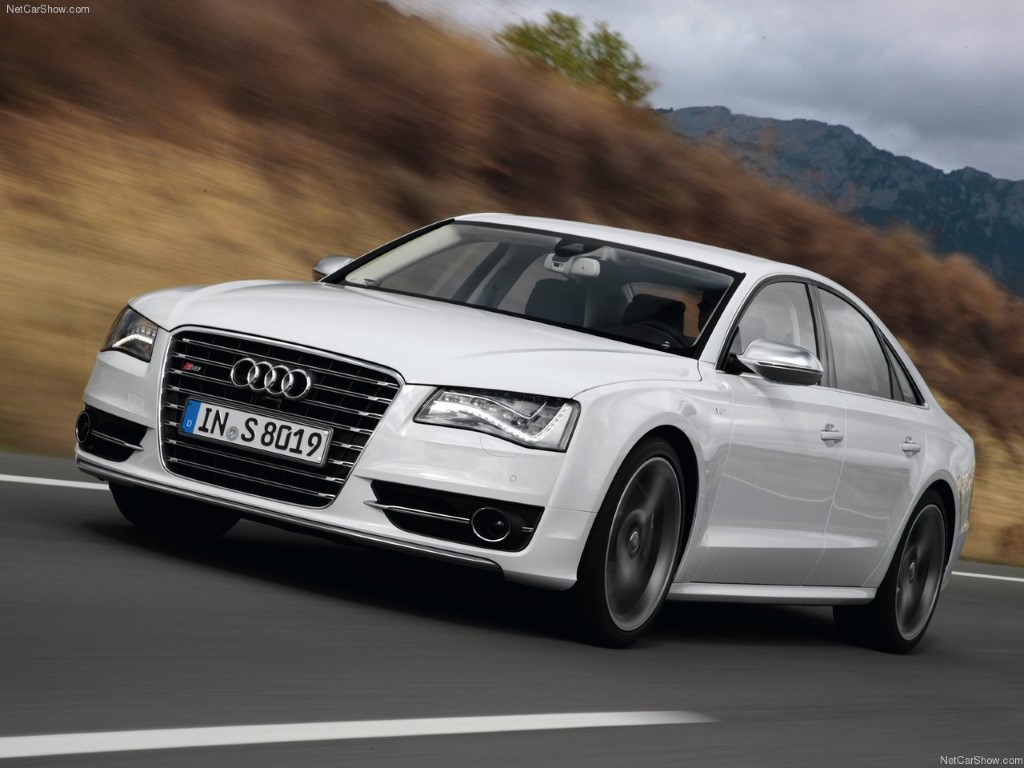

The Return to the V8: Intelligent Downsizing

With the tightening of global emissions standards and the need for greater fuel efficiency, the era of large naturally aspirated engines came to an end. For the D4 generation, launched in 2012, Audi replaced the 5.2 V10 with a 4.0-liter Biturbo V8 engine (TFSI).

Although smaller in displacement, this engine was technologically superior in all practical aspects:

• Power and Torque: The initial model produced 520 hp and a constant 650 Nm of torque over a wide rev range (1,700 to 5,500 rpm).
• Cylinder on Demand (COD): In low-load situations (such as highway cruising speed), the engine deactivated four of the eight cylinders, cutting off injection and ignition. To prevent occupants from feeling vibrations or hearing strange noises, the car used active engine mounts (which vibrated in antiphase to cancel out the oscillation) and Active Noise Cancellation (ANC) through the sound system.

Supercar Performance

The S8 D4 redefined what was expected of a sedan's acceleration. Thanks to the 8-speed automatic transmission (ZF 8HP) and the instantaneous torque of the turbos (located in the "V" of the engine to reduce lag, a configuration known as "Hot V"), the car accelerated from 0 to 100 km/h in an official 4.1 seconds. Independent tests frequently recorded times in the 3.5-second range, putting it side-by-side with dedicated supercars.

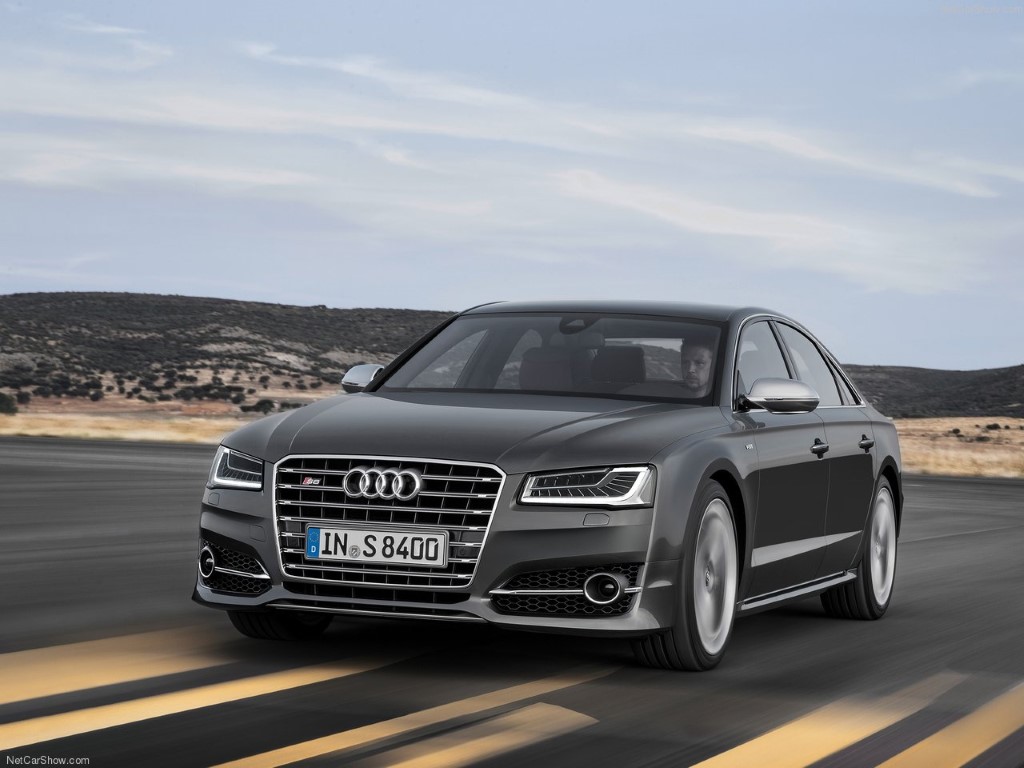

The Facelift and the S8 Plus (2015–2018)

In 2015, the lineup received an aesthetic update (new Matrix LED headlights with dynamic turn signals). But the big news was the introduction of the Audi S8 Plus in 2016, which effectively replaced the standard S8 in many markets.

• Plus Engineering: Audi Sport remapped the engine management and altered the exhaust valves to extract 605 hp and up to 750 Nm of torque on overboost.
• Speed: With the Dynamic package, the speed limiter was raised to 305 km/h (190 mph). The 0 to 100 km/h acceleration dropped to an official 3.8 seconds, making it one of the fastest combustion sedans ever produced.
• Plus Aesthetics: It differentiated itself with gloss black trims (grille, diffuser, windows), darkened taillights, and a lip spoiler on the trunk lid, often in exposed carbon fiber.

Reliability and Maintenance (D4)

Despite the staggering performance, the D4 presented specific maintenance challenges documented by experts.

• Turbos: The location of the turbos at the top of the engine ("Hot V") generates immense heat. Failures in the turbochargers were reported, often linked to clogged oil screen filters that cut off lubrication to the turbines. Audi released technical revisions to mitigate this issue.
• Air Suspension: As in previous generations, the compressors and air bags are wear items, with high replacement costs out of warranty.

Design and Philosophy: The Digital Era

The current S8 (D5) was launched as a 2020 model and represents the total integration of digitalization in the automobile. The interior abandoned almost all physical buttons in favor of a dual touchscreen system with haptic feedback.

A crucial change in this generation was the body style strategy. For the first time, in key markets such as the United States and China, the S8 began to be sold exclusively in the long-wheelbase (LWB) version, recognizing that the buyer profile had shifted from "enthusiast driver" to "executive who occasionally drives". In Europe, the short-wheelbase version remained available, maintaining the sporty tradition.

Powertrain and Mild Hybridization (MHEV)

The 4.0 TFSI V8 engine was retained but profoundly revised.

• Power: 571 hp (420 kW) and 800 Nm of torque.
• 48V System: The car integrates a primary 48-volt electrical system. This powers a belt alternator starter (BAS) that allows for advanced "coasting" functions (rolling with the engine off at high speeds to save fuel) and an almost imperceptible start-stop system. This system is also the foundation for the car's revolutionary suspension.

Predictive Active Suspension: The Defining Technology

The great technical differentiator of the S8 D5 is the Predictive Active Suspension.

• Mechanism: Using front stereo cameras, the car "reads" the road surface. Before a wheel hits an imperfection (like a manhole cover or a speed bump), electric actuators on each wheel (powered by the 48V system) actively raise or lower the wheel to absorb the impact. This almost completely decouples the cabin from road irregularities.
• Cornering Behavior: The system has a "Curve Tilt" function, where the car leans up to 3 degrees into the corner (like a motorcycle or a boat), reducing the lateral force felt by passengers and increasing comfort.
• Passive Safety: In the event of an imminent side collision detected by radar sensors, the suspension instantly raises the impact side by 80 mm. This causes the colliding vehicle to hit the door sill (the strongest part of the structure) instead of the door itself, reducing cabin deformation by up to 50%.

Rear-Wheel Steering

To compensate for the increase in size (especially in the long version), the S8 D5 comes equipped as standard with Dynamic All-Wheel Steering. At low speeds, the rear wheels turn in the opposite direction to the front wheels, reducing the turning radius and making parking easier. At high speeds, they turn in the same direction, increasing stability during lane changes.

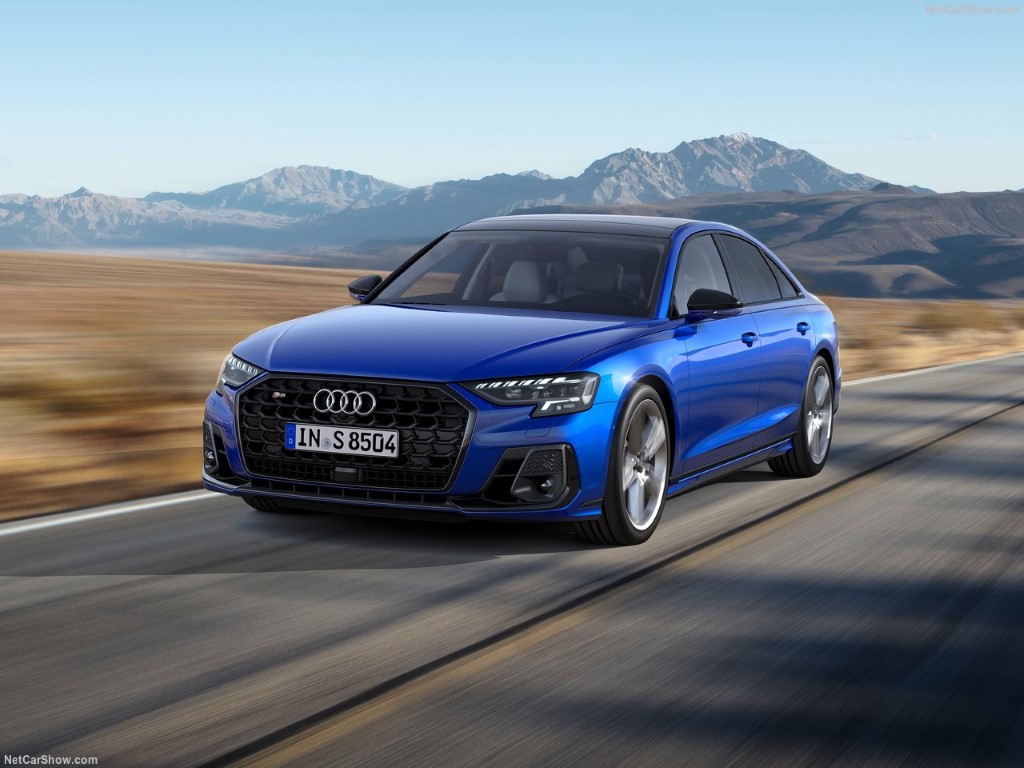

Recent Updates (2022–2025)

2022 Facelift: The model received a new front grille with "L"-shaped elements, new Matrix LED digital light signatures, and OLED taillights that change design according to the selected driving mode (Dynamic, Comfort, etc.).

The Future: Reports indicate that the 2025 or 2026 model year will mark the end of the internal combustion engine S8. Audi has announced that it will not develop new V8 engines, and the D-segment successor (possibly called A8 e-tron or similar) will be fully electric, ending a lineage of almost 30 years of gasoline V8 and V10 engines.

Sales Data and Rarity

Audi does not disclose isolated production numbers for the S8 variant, integrating them into the A8 family reports. However, analyzing US sales data allows us to infer the model's exclusivity:

• Downward Trend: Sales of the A8/S8 family in the US peaked in the D3/D4 era (about 6,000 units in 2012/2013) and fell to less than 2,000 units annually in the D5 era (2022-2024).
• S8 Share: Historically, the S8 represents between 10% to 15% of the A8 sales mix. This suggests that, in recent years, only a few hundred new S8s are delivered annually in a market as large as the US.
• Collectibility: The manual S8 D2 is the rarest and most valuable, followed by the S8 D3 V10 due to its exotic connection. The S8 Plus D4 is beginning to be recognized as a future classic for its raw performance that marked the peak of the non-hybrid era.

Comparative Table of Specifications by Generation

The following table summarizes the technical evolution of the model, allowing a direct comparison of performance and engineering metrics.

The history of the Audi S8 is the chronicle of the evolution of German engineering. The model began (D2) as a demonstration of mechanical purity and lightness, proving that aluminum was the future. It evolved (D3) to embrace exoticism and multi-cylinder complexity in an era of economic excess. It adapted (D4) to the need for efficiency through turbo technology, reaching performance levels that defied physics. And, finally (D5), it transformed into a computer on wheels, where predictive suspension and hybridization define the experience.

For the enthusiast or collector, each generation offers a distinct value proposition. The D2 is the analog classic; the D3 is the mechanical symphony; the D4 is the highway missile; and the D5 is the technological sanctuary. With the imminent end of internal combustion in Audi's top lineup, the S8 will remain as a lasting testament to an era when a limousine could legitimately be called a sports car.
